by nuovadarimpianti | 14-07-2026 | Mixers
The electroplating industry is one of the most aggressive environments for any mechanical component immersed in a treatment tank. Chromic acid solutions at 60°C, pH-controlled nickel plating baths, pickling solutions with hydrochloric and hydrofluoric acid, hot alkaline degreasing baths: each tank presents a different combination of chemical aggressiveness, temperature and mixing requirements.
An inadequate agitator in an electroplating tank does not simply perform poorly — it compromises the quality of the electrodeposit. Insufficient mixing causes non-uniform ion distribution, hot and cold zones in the tank, accumulation of contaminating metal ions near the cathode, and surface defects on the workpiece (porosity, burning, coating delamination).
This guide analyses the specific agitation requirements for each stage of the electroplating process and explains how to select the correct agitator for every type of bath.
Why agitation is critical in electroplating processes
In an electroplating bath, metal deposition occurs through electrochemical reduction of metal ions on the cathode surface (the workpiece to be coated). Deposit quality depends directly on three factors that agitation controls.
Uniform ion distribution
During deposition, metal ions are consumed near the cathode, creating a depleted zone (diffusion boundary layer). If the solution is not adequately agitated, the ionic concentration near the workpiece drops below the critical level and the deposit becomes porous, rough or non-uniform. Agitation constantly renews the boundary layer, maintaining uniform ionic concentration across the entire workpiece surface.
Temperature uniformity
Many electroplating baths operate at controlled temperatures: chrome plating at 50–60°C, nickel plating at 45–55°C, alkaline zinc at 25–35°C. Heating elements or coils create thermal gradients that, without agitation, can reach 5–10°C between different zones of the tank. This non-uniformity causes differences in deposit thickness, aesthetic defects and variations in coating mechanical properties. The agitator maintains temperature uniformity within ±1–2°C.
Gas bubble removal
During electrolysis, hydrogen gas evolves at the cathode. If hydrogen bubbles adhere to the workpiece surface, they prevent metal deposition at those points, creating porosity (pitting). Agitation promotes bubble detachment and removal, improving the surface quality of the deposit.
The effect on cathode efficiency
Agitation has a direct impact on process efficiency. In a chrome plating bath, cathode efficiency with agitation reaches 70–90%, while without agitation it drops to 50–60%. This means that for the same treatment time, the agitated workpiece receives a significantly thicker and more uniform deposit.
Electroplating baths: specific requirements for each treatment type
Each stage of the electroplating cycle has different agitation needs. Let us examine the main ones.
Alkaline degreasing
Degreasing is the first stage of the cycle and uses strongly alkaline solutions (NaOH 30–50 g/l, carbonates, phosphates, surfactants) at temperatures of 50–80°C. Agitation must be vigorous to promote detachment of organic contaminants from the workpiece surface, keep surfactants in emulsion and ensure uniform cleaning across the entire surface.
For this stage, a high-speed EV series agitator with a three-blade marine propeller impeller in PP is the standard choice. The high speed generates the turbulence needed to “strip” oily residues from the metal surface.
Acid pickling
Pickling removes oxides and scale from the surface through immersion in strong acids: 10–20% hydrochloric acid (the most common), 10–25% sulfuric acid, or hydrochloric/hydrofluoric acid blends for stainless steels.
Agitation must be moderate: sufficient to maintain uniform acid concentration and remove reaction products (metal salts) from the surface, but not so violent as to cause excessive base metal removal. The EVR series with pitched blade impeller at low speed (50–150 rpm) is ideal: it generates recirculation without excessive turbulence.
For baths with hydrofluoric acid, the material must be PVDF. For dilute hydrochloric and sulfuric acid, PP is adequate.
Alkaline zinc bath
Alkaline zinc plating uses sodium zincate solutions in a strongly alkaline environment (NaOH 80–140 g/l) at ambient or slightly heated temperature (25–35°C). Agitation must be gentle and uniform to avoid localised turbulence that would cause non-uniform deposits.
A low-speed EVR or KVRL series agitator at 30–80 rpm with PP pitched blade impeller is ideal. PP has excellent resistance to caustic soda, even concentrated — one of the few applications where PP outperforms PVDF.
Nickel bath (Watts)
The Watts bath (nickel sulfate, nickel chloride, boric acid) operates at 45–55°C and pH 3.5–4.5. Agitation must be uniform and low-turbulence to prevent air incorporation and ensure a bright, pit-free deposit.
The EVR series at 40–100 rpm with PP impeller is the typical configuration. For electroless nickel baths that operate at 85–90°C with more aggressive pH, PVDF offers greater reliability.
Chrome plating bath
Chrome plating is the most critical electroplating process from both the agitation and materials standpoint. The bath contains chromic acid (CrO₃ 200–400 g/l) and sulfuric acid as catalyst, at temperatures of 50–60°C.
Chromic acid is a strong oxidiser that attacks both PP and PVC. PVDF is the only adequate thermoplastic material for agitators immersed in chrome plating baths.
Agitation must be moderate and uniform: sufficient to maintain homogeneous temperature and constant ion distribution, but without excessive turbulence that would promote evaporation of chromium compounds (an environmental and health concern). The EVR or KVRL series with PVDF impeller at 30–60 rpm is the optimal configuration.
Acid copper bath
Acid copper plating (copper sulfate in sulfuric acid) operates at ambient temperature with H₂SO₄ concentrations of 5–10%. Agitation must be vigorous near the cathodes to uniformise ion distribution, especially on workpieces with complex geometries (holes, recesses, corners).
The EV series with PP impeller at medium-high speed (300–800 rpm) provides the turbulent flow needed. For plants with large tanks, side-entry agitators from the LVO series may be preferable.
Rinsing and washing
Rinse tanks between process stages require vigorous agitation to rapidly remove chemical drag-out from the workpiece surface. High-speed EV series in PP, with the possibility of multiple installations for large tanks.
Installation configurations for electroplating tanks
Electroplating tanks have specific geometries (typically rectangular, long and narrow) that require particular installation solutions.
Top-entry installation
Top-entry installation is the most common for small and medium tanks. The agitator is mounted on the tank rim with a bracket support. The shaft descends vertically into the solution with the impeller positioned in the lower third of the tank.
For electroplating tanks, Nuova Darimpianti offers the EVL and EVRL series with extended shafts, specifically designed to reach the bottom of deep tanks without requiring intermediate guides.
Side-entry installation
For long tanks where a single top-entry agitator cannot guarantee uniformity along the entire length, side-entry installation (LVO or LRO series) generates a helical flow involving the entire volume. This configuration is particularly effective for electroplating lines with tanks 2–5 metres in length.
Multiple installation
For very large tanks or processes requiring particularly uniform agitation, multiple agitators can be installed on the same tank, distributed evenly along the length. In this case, it is important that the impellers generate complementary (not opposing) flows to avoid zones of excessive turbulence or dead zones.
Fume resistance: an often-overlooked aspect
In hot electroplating tanks, the zone immediately above the liquid level is exposed to concentrated acid fumes and vapours. The agitator shaft passes through this zone and suffers chemical attack that is different from — and often more aggressive than — the attack in the solution.
Chromic acid fumes, for example, attack PP even when the solution below would not (because the fumes are more concentrated and oxidising). For this reason, in chrome plating tanks it is advisable to use PVDF also for the exposed portion of the shaft, or to provide a protective sleeve in the liquid-vapour interface zone.
Agitator maintenance in electroplating environments
The electroplating environment is particularly aggressive for maintenance. Here are the recommended practices.
The impeller and shaft should be visually inspected every 3–6 months for signs of chemical attack (whitening, surface roughness, swelling). Bath concentration and temperature must be constantly monitored: a concentration drift can shift the fluid outside the material’s compatibility zone. Bearings and seals (in gear-reducer versions) must be protected from acid vapours with bellows or sleeves.
Thanks to solid-block CNC machining, Nuova Darimpianti components have no internal stresses that could accelerate chemical degradation: this translates to longer service life compared to moulded components, especially in cyclic environments (tanks heated and cooled daily).
Frequently asked questions
What agitation speed is needed for an electroplating tank?
It depends on the bath type. For chrome and nickel plating, low speeds (30–100 rpm) with pitched blade impellers are ideal to avoid excessive turbulence. For degreasing and rinsing, higher speeds (300–800 rpm) with propeller impellers promote mechanical cleaning. The guiding principle is: deposition baths → low speed; preparation baths → high speed.
Can I use compressed air instead of a mechanical agitator?
Air agitation is a traditional alternative, but has disadvantages: it introduces oxygen into the bath (problematic for many processes), creates acid mists above the tank, does not allow precise control of mixing intensity, and has lower energy efficiency. Mechanical agitators offer more precise control and better efficiency, and are preferred in modern plants.
Which material should I use for an agitator in a chrome plating tank?
PVDF is the only adequate thermoplastic material for chrome plating baths. Chromic acid is a strong oxidiser that attacks both PP and PVC. PVDF resists chromic acid at all concentrations and operating temperatures of chrome plating (50–60°C).
Can the agitator damage workpieces in the tank?
If the impeller is too close to the workpieces hung on the cathode frame, excessive flow can cause non-uniform deposits on exposed edges (the “dog bone” effect). The impeller should be positioned at least 15–20 cm from the workpieces, in the lower third of the tank, where it generates circulation without directly impinging on the cathode surfaces.
Does Nuova Darimpianti supply agitators for complete electroplating lines?
Yes. Nuova Darimpianti designs agitation solutions for the entire electroplating line: degreasing, pickling, deposition baths, rinses and post-deposition treatments. Each tank is individually analysed for size, fluid, temperature and process objective, with personalised selection of series, material and speed.
The right agitator for every stage of the electroplating cycle
The quality of an electroplating treatment depends on many factors, but agitation is one that is too often underestimated. A correctly sized agitator built from the right material improves deposit uniformity, reduces rejects, increases cathode efficiency and extends bath life.
Nuova Darimpianti manufactures high-speed agitators (EV, EVK, EVL, KVL series) and low-speed agitators (EVR, EVRK, EVRL, KVRL series) in PP, PVC and PVDF specifically designed for the electroplating and surface treatment industry. Every component is machined from solid blocks on CNC centres to guarantee maximum chemical resistance and durability even in the most aggressive baths.
Planning a new electroplating line or looking to improve agitation in existing tanks? Contact Nuova Darimpianti’s engineering team for personalised advice.
by nuovadarimpianti | 14-07-2026 | Pumps
Transferring corrosive liquids from drums, IBC totes and industrial containers is a daily operation in every chemical plant, electroplating facility and water treatment works. It is also one of the most hazardous operations when performed without the correct equipment: tilting a 200-litre drum of sulfuric acid is dangerous for operators and can cause spills with severe environmental and legal consequences.
Drum transfer pumps solve the problem at its source: they allow the drum contents to be transferred in a controlled, safe manner without manual handling of the container. But not all transfer pumps are the same. The choice depends on the fluid type, viscosity, volume to transfer and operating conditions.
This guide analyses the different types of transfer pump available for corrosive fluids, the selection criteria and the solutions offered by Nuova Darimpianti for the safe transfer of industrial acids, bases and solvents.
Why a dedicated transfer pump is essential
Transferring corrosive liquids from containers is not a trivial operation. Here is why an improvised approach is unacceptable.
Operator safety
Manual tilting of 200-litre drums exposes operators to crushing risks, muscular strain and, above all, corrosive liquid splashes. Even a small spill of hydrofluoric acid or concentrated caustic soda can cause severe chemical burns. Transfer pumps eliminate the need to physically move the container: the operator inserts the suction tube into the drum and starts the pump.
Regulatory compliance
EU REACH regulations, CLP classification and national workplace safety legislation require specific operating procedures for handling hazardous chemical substances. The use of transfer pumps made from compatible materials with anti-drip systems is a prevention measure required in the risk assessment of any company that handles acids and bases.
Transfer control
A transfer pump allows precise flow rate control, preventing overdosing in destination tanks. This is particularly important in electroplating bath preparation, reagent dosing in water treatment plants and filling of storage tanks.
Contamination prevention
Gravity transfer via the drum tap exposes the liquid to air and ambient dust. Transfer pumps with closed systems keep the fluid isolated, avoiding contamination — a critical requirement in the pharmaceutical industry and semiconductor manufacturing.
Types of transfer pump for corrosive fluids
Transfer pumps fall into several categories based on operating principle and installation configuration.
Vertical drum pumps
Vertical drum pumps are the most common solution for emptying 200-litre drums and IBC totes. The principle is straightforward: a vertical tube is inserted into the drum through the top bung. Inside the tube sits an impeller or pumping element which, driven by a motor mounted on top, draws liquid from the drum bottom and pushes it towards the outlet.
The advantages of vertical drum pumps include ease of use (insert, switch on, transfer), ability to empty the drum almost completely, minimal footprint and portability.
Plastic drum pumps are available in PP (for dilute acids, bases, saline solutions) and PVDF (for concentrated acids, solvents, oxidising fluids). Suction tube length ranges from 500 mm (for 25-litre cans) to 1,200 mm (for 200-litre drums) and up to 1,500 mm for IBC totes.
Horizontal centrifugal pumps for transfer
For transfers from storage tanks, vessels or large-volume containers, horizontal centrifugal pumps offer higher flow rates and head than drum pumps. In this context, Nuova Darimpianti’s PMC-1 and PMC-2 series are the ideal solution: horizontal centrifugal pumps with single mechanical seal (PMC-1) or double flushed seal (PMC-2), available in PP, PVC and PVDF.
These pumps are designed for continuous or semi-continuous transfer of significant volumes, with flow rates up to tens of cubic metres per hour and head values covering most plant requirements.
Magnetic drive pumps for safe transfer
When the fluid being transferred is highly hazardous (hydrofluoric acid, carcinogenic solvents, toxic reagents), the HTM series magnetic drive pump guarantees zero leakage during transfer. The absence of a mechanical seal eliminates any possibility of dripping, making the transfer operation compliant with the most stringent regulations.
Pneumatic diaphragm pumps (AODD)
Air-operated double diaphragm pumps are an alternative for transferring viscous fluids or fluids with suspended solids. They run on compressed air (no electrical supply required), are self-priming and can run dry without damage. They are particularly suited to ATEX environments where electric motors cannot be used.
The limitations of pneumatic pumps are flow pulsation (transfer is intermittent rather than continuous) and the need for a compressed air supply.
Selection criteria: how to choose the right transfer pump
Transfer pump selection depends on five main factors.
1. Fluid type and chemical compatibility
The first criterion is the compatibility of the pump material with the fluid being transferred. For dilute acids, bases and saline solutions, PP is the standard choice. For concentrated acids, solvents and oxidising fluids, PVDF is required. For sodium hypochlorite, PVC is the preferred material.
Compatibility applies not only to the pump body but to all wetted components: seals (FPM, EPDM or PTFE), suction tube, discharge hose and fittings.
2. Fluid viscosity
Centrifugal pumps (both drum and horizontal) operate optimally with low to medium-viscosity fluids (up to 200–500 cP). For more viscous fluids (heavy oils, resins, pastes), pneumatic diaphragm or progressive cavity pumps are more suitable.
Most industrial acids and bases have viscosity close to water (1–10 cP), so centrifugal pumps are the ideal choice for chemical reagent transfer.
3. Flow rate and volume
For occasional transfers from individual drums, a vertical drum pump with a flow rate of 50–100 litres per minute is sufficient. For transfers from IBC totes or tanks, horizontal centrifugal pumps with higher flow rates are needed. For continuous supply to production lines, pumps must be sized for the process flow requirement.
4. Required head
If the destination tank is at a higher level than the drum, or if the transfer line is long, the pump must provide sufficient head to overcome the height difference and friction losses. Vertical drum pumps have limited head (3–10 metres). Horizontal centrifugal PMC pumps achieve significantly higher head values.
5. Installation environment (ATEX)
In environments with explosion risk (ATEX zones), electric motors must be Ex-certified or replaced with pneumatic drives. Nuova Darimpianti offers versions with pneumatic motors for its pumps and agitators, compliant with regulations for classified environments.
Essential accessories for safe transfer
A transfer pump alone is not sufficient for a safe and controlled operation. Accessories complete the system.
Resistant tubing and fittings
Suction and discharge tubing must be made of material compatible with the fluid. PP tubing, PVDF tubing or flexible PTFE-lined hoses are the standard options. Fittings must ensure leak-tightness and allow quick, secure connection.
Anti-drip systems
At the end of transfer, residual liquid in the suction tube tends to drip during extraction from the drum. Anti-drip systems (check valves, closure caps) prevent spills and contamination of the work area.
Flow meters
For precise dosing operations, a flow meter mounted on the discharge line allows exact control of the transferred volume. Flow meters in PP or PVDF are available for corrosive fluids.
Containment bunds
Regulations require that hazardous substance transfer operations take place over containment bunds capable of holding the entire drum volume in case of accidental spillage.
Typical applications for industrial transfer
Transfer is an operation that crosses many industrial sectors.
Electroplating bath preparation
Preparing electroplating baths requires precise transfer of acids (sulfuric, hydrochloric, chromic) and additives from drums to treatment tanks. PVDF transfer pumps are essential for chromic acid; PP is adequate for dilute acids.
Reagent dosing in water treatment plants
Sodium hypochlorite, sulfuric acid for pH correction, polyelectrolytes: these reagents are supplied in drums or IBC totes and must be transferred to dosing tanks. PVC transfer pumps for hypochlorite, PP for dilute acids.
Storage tank refilling
Transfer from tanker trucks to the plant’s storage tanks requires horizontal centrifugal pumps with high flow rates. Nuova Darimpianti’s PMC-1 and PMC-2 series cover this need with flow rates up to tens of m³/h.
Laboratories and pilot plants
In chemical laboratories and pilot plants, transfer involves small volumes but often highly hazardous fluids. PVDF drum pumps with variable-speed motors allow precise control even at low flow rates.
Pharmaceutical industry
Transferring pure solvents and reagents requires pumps that do not contaminate the fluid. HTM series magnetic drive pumps in PVDF are the standard for these applications, guaranteeing zero contamination and zero leakage.
The Nuova Darimpianti solution for chemical transfer
Nuova Darimpianti offers a complete range of solutions for corrosive fluid transfer, all based on solid-block CNC machining for maximum reliability.
PMC-1 and PMC-2 horizontal centrifugal pumps are ideal for transfers from tanks and IBC totes with high flow rates and head. PMC-1 with single seal for standard fluids, PMC-2 with double flushed seal for hazardous fluids.
HTM magnetic drive pumps are the choice for highly hazardous fluids where zero leakage is a non-negotiable requirement.
VSK and VGA vertical pumps are perfect for direct suction from open tanks and vessels, eliminating the need for priming.
All models are available in PP, PVC and PVDF, with electric or pneumatic motor options for ATEX environments.
Frequently asked questions
Which pump do I need for transferring sulfuric acid from drums?
For dilute sulfuric acid (up to 50%), a PP drum pump is sufficient. For concentrated sulfuric acid (70–98%), PVDF is required. For transfers from IBC totes or larger volumes, a PVDF PMC horizontal centrifugal pump is the most efficient solution.
Can transfer pumps handle viscous fluids?
Centrifugal pumps work well up to 200–500 cP. For more viscous fluids (heavy oils, resins, pastes), pneumatic diaphragm pumps are more suitable. Most industrial acids and bases have very low viscosity and pose no issues.
Is it safe to use a transfer pump in an ATEX zone?
Yes, provided the motor is ATEX-certified or a pneumatic drive is used. Nuova Darimpianti offers pneumatic motor versions for all its pumps, compliant with regulations for explosive atmosphere environments.
How often should a transfer pump for acids be inspected?
Seals and wetted parts should be inspected every 3–6 months, or more frequently for intensive use with concentrated acids. Solid-block CNC-machined pump bodies last significantly longer than moulded components, requiring less frequent replacement.
Can I use the same pump for different acids and bases?
It is technically possible if the material is compatible with all fluids (for example, a PVDF pump can handle both acids and dilute bases). However, to avoid cross-contamination between incompatible fluids, it is good practice to dedicate a pump to each fluid type or to perform a thorough flush between uses.
Safe transfer is an investment, not a cost
A correctly designed transfer system protects operators, satisfies regulations, prevents spills and safeguards product quality. The cost of a transfer pump in adequate material is a fraction of the cost of a chemical accident, environmental remediation or contaminated production batch.
Nuova Darimpianti designs and manufactures pumps for corrosive fluid transfer in PP, PVC and PVDF, all machined from solid blocks on CNC centres. From small drum pumps to centrifugal pumps for storage tank refilling, every solution is sized to the specific requirements of your plant.
Need a solution for safe transfer of acids, bases or solvents in your plant? Contact our engineers for personalised advice.
by nuovadarimpianti | 14-07-2026 | Pumps
Selecting a centrifugal pump is not a matter of guesswork. An incorrectly sized pump costs money from the very first hour of operation — and in chemical plants handling corrosive fluids, the consequences extend far beyond wasted energy.
An oversized pump delivers more flow than the system needs, forcing the operator to throttle the discharge valve. The pump runs far from its best efficiency point, consuming excess power and generating vibration, noise and premature wear. Worse, the resulting turbulence and pressure drop across the throttled valve can trigger cavitation, eroding the impeller and volute — components that, in a thermoplastic pump, are far more sensitive to cavitation damage than their metal equivalents.
An undersized pump, on the other hand, simply cannot deliver the required flow rate or head. The process starves, batch times increase, and operators may resort to unsafe workarounds such as bypassing safety interlocks or running multiple pumps in improvised parallel configurations.
In corrosive environments the stakes are higher still: pump failure means potential chemical spills, regulatory violations and costly downtime. Correct centrifugal pump sizing is therefore the single most important step in any pump selection project. This guide walks through the calculation process step by step, from flow rate and head determination to NPSH verification and final pump selection.
Flow rate: the starting point of centrifugal pump sizing
Every centrifugal pump sizing exercise begins with one question: how much fluid does the system need to move per unit of time?
Defining flow rate
Flow rate (Q) is the volume of liquid the pump must deliver, typically expressed in cubic metres per hour (m³/h) for larger systems or litres per minute (l/min) for smaller installations. In some specifications you may also encounter litres per second (l/s) or US gallons per minute (GPM). Consistency of units throughout the calculation is essential to avoid errors.
Determining required flow rate from process needs
The required flow rate is dictated by the process, not by the pump. In a continuous process — such as feeding acid to a reactor or circulating coolant through a heat exchanger — the flow rate is determined by the process mass balance, the heat transfer requirement or the chemical reaction rate. In batch operations — such as filling a treatment tank or transferring reagents from a drum — the flow rate is calculated from the volume to be transferred divided by the allowable transfer time.
For example, if you need to fill a 10 m³ electroplating bath in 30 minutes, the required flow rate is:
Q = 10 m³ / 0.5 h = 20 m³/h
Continuous versus batch operations
Continuous processes demand a pump that can maintain a steady flow rate for extended periods — hours, days or even weeks without interruption. This places emphasis on pump reliability, seal life and bearing design. Batch operations may impose higher instantaneous flow rates but allow the pump to rest between cycles, which can reduce thermal and mechanical stress.
Safety margins
Once the process flow rate is established, it is standard practice to add a safety margin of 10–15 % to account for uncertainties in the system design, future capacity increases and measurement tolerances. A system requiring 20 m³/h should therefore be sized for approximately 22–23 m³/h. Avoid the temptation to add excessive margin: a 50 % safety factor on flow rate leads directly to the oversizing problems described above.
Head: the most misunderstood parameter in pump sizing
Head is the parameter that causes the most confusion in centrifugal pump sizing. Many engineers instinctively think in terms of pressure (bar or kPa), but pumps generate head — and the distinction matters.
What is head?
Head (H) is the height, in metres of liquid column, to which the pump can raise the fluid. A pump that generates 20 metres of head will raise any liquid — water, sulfuric acid, caustic soda — to a height of 20 metres. The pressure at the pump discharge, however, will differ depending on the fluid density: denser fluids produce higher pressure for the same head.
Why head is not the same as pressure
The relationship between head and pressure is:
P = ρ × g × H
Where P is pressure (Pa), ρ is fluid density (kg/m³), g is gravitational acceleration (9.81 m/s²) and H is head (m). A pump generating 20 m of head will produce a discharge pressure of approximately 1.96 bar with water (ρ = 1,000 kg/m³) but 2.65 bar with 70 % sulfuric acid (ρ ≈ 1,350 kg/m³). The pump does not “know” it is pumping acid — it simply imparts kinetic energy to the fluid. But the motor must supply more power to move the denser liquid.
Calculating total head
The total head the pump must generate is the sum of three components:
H_total = H_static + H_friction + H_pressure
- H_static is the vertical height difference between the liquid surface in the suction vessel and the discharge point. If the discharge is 8 metres above the suction level, H_static = 8 m.
- H_friction is the head lost to friction in the piping system (discussed in detail in the next section).
- H_pressure is the additional head required if the discharge vessel operates under pressure. If the destination tank is pressurised at 1.5 bar gauge and the fluid is water, H_pressure = 1.5 × 10⁵ / (1,000 × 9.81) ≈ 15.3 m.
A practical example
Consider a system that pumps 30 % hydrochloric acid (ρ ≈ 1,150 kg/m³) from a ground-level storage tank to a reactor 6 metres above. The piping system is 45 metres of DN50 PP pipe with eight 90° elbows and two gate valves. The reactor operates at atmospheric pressure.
- H_static = 6 m
- H_friction = 4.2 m (calculated in the next section)
- H_pressure = 0 m (atmospheric discharge)
- H_total = 6 + 4.2 + 0 = 10.2 m
Adding a 10 % safety margin: H_design = 11.2 m
Friction losses: how to calculate them
Friction losses account for the energy the fluid loses as it flows through pipes, fittings and valves. In many systems, friction losses represent 30–50 % of the total head, so an accurate calculation is essential.
Losses in straight pipe
Friction loss in straight pipe depends on the pipe diameter, length, fluid velocity, fluid viscosity and pipe wall roughness. The Darcy-Weisbach equation provides the theoretical framework:
H_f = f × (L/D) × (v²/2g)
Where f is the Darcy friction factor, L is pipe length (m), D is internal pipe diameter (m), v is fluid velocity (m/s) and g is gravitational acceleration. In practice, engineers use friction loss tables or software that provide losses in metres per 100 metres of pipe for a given flow rate and pipe diameter.
Local losses at fittings and valves
Each fitting — elbow, tee, reducer, valve — creates additional turbulence and friction. The equivalent length method converts each fitting to an equivalent length of straight pipe. For example, a DN50 90° elbow has an equivalent length of approximately 1.5 m. A gate valve (fully open) adds about 0.4 m equivalent length.
Returning to our example: eight 90° elbows (8 × 1.5 = 12 m) plus two gate valves (2 × 0.4 = 0.8 m) give an equivalent length of 12.8 m. Added to the 45 m of straight pipe, the total equivalent pipe length is 57.8 m.
The advantage of thermoplastic pipes
An often-overlooked factor is pipe wall roughness. Steel pipes have a roughness of approximately 0.045 mm; PP and PVC pipes have a roughness of just 0.007 mm — six times smoother. This translates directly into lower friction factors and reduced head losses, meaning smaller pumps or, equivalently, energy savings over the life of the installation. When designing a piping system for corrosive acids, thermoplastic pipes deliver both chemical resistance and hydraulic efficiency.
Selecting the correct pipe diameter
Pipe diameter has a dramatic effect on friction losses because velocity — and therefore friction — increases with the square of the diameter reduction. As a rule of thumb, fluid velocity in the suction line should be 1.0–1.5 m/s and in the discharge line 1.5–2.5 m/s. Exceeding 3 m/s in thermoplastic piping risks excessive pressure surges (water hammer) that can damage pipe joints.
The pump performance curve: finding the operating point
Once flow rate and total head are known, the next step is to match them to a specific pump model using the pump performance curve.
Reading the H-Q curve
Every centrifugal pump has a characteristic curve — the H-Q curve — which plots the head the pump can generate at each flow rate. At zero flow (shut-off), head is at its maximum. As flow increases, head decreases. The shape of the curve depends on the impeller geometry and speed.
The system also has a curve: the system resistance curve, which plots the total head required at each flow rate. At zero flow, the system head equals the static head. As flow increases, friction losses rise (approximately with the square of the flow rate), so the system curve climbs.
The operating point
The operating point is the intersection of the pump curve and the system curve. This is where the pump will actually operate: it is the flow rate and head the system will achieve. If the operating point does not match your required duty point, a different pump size or impeller trim is needed.
Best Efficiency Point (BEP)
Every centrifugal pump has a Best Efficiency Point (BEP) — the flow rate at which the pump converts the maximum percentage of shaft power into hydraulic energy. Operating within ±10–15 % of BEP ensures low vibration, low noise, long seal life and minimum energy consumption. Operating far below BEP causes recirculation inside the pump; operating far above BEP causes cavitation and shaft deflection.
Nuova Darimpianti pump curves
Nuova Darimpianti provides detailed performance curves for all PMC-1 and PMC-2 horizontal centrifugal pump models as well as the HTM magnetic drive series, showing H-Q performance, efficiency, power absorption and NPSH required. These curves allow precise selection of the optimum pump size for any duty point within the range.
NPSH: preventing cavitation in centrifugal pumps
Cavitation occurs when the local pressure inside the pump drops below the vapour pressure of the liquid, causing vapour bubbles to form and then collapse violently against the impeller and casing. The result is noise, vibration, loss of performance and rapid erosion of wetted surfaces.
What is NPSH?
NPSH (Net Positive Suction Head) is the measure used to predict whether cavitation will occur. It comes in two values:
- NPSH available (NPSH_a): the energy available at the pump suction flange, determined by the system layout.
- NPSH required (NPSH_r): the minimum energy the pump needs at the suction to avoid cavitation, determined by the pump design and published by the manufacturer.
The rule is simple: NPSH_a must always be greater than NPSH_r.
Calculating NPSH available
NPSH_a = (P_atm / ρg) + H_s − (P_v / ρg) − H_f,s
Where:
– P_atm = atmospheric pressure (typically 101,325 Pa at sea level)
– ρ = fluid density (kg/m³)
– g = 9.81 m/s²
– H_s = static suction head (positive if liquid level is above pump centreline, negative if below)
– P_v = vapour pressure of the fluid at operating temperature (Pa)
– H_f,s = friction losses in the suction line only (m)
Why cavitation is especially dangerous in thermoplastic pumps
In metal pumps, cavitation erodes the impeller surface gradually; the pump may continue to operate — albeit with reduced performance — for weeks or months. In thermoplastic pumps (PP, PVC, PVDF), the material is softer and cavitation damage progresses far more rapidly. A PP impeller subjected to sustained cavitation can be destroyed in days rather than months. This makes NPSH verification absolutely critical for any thermoplastic pump installation.
How to increase NPSH available
If the NPSH_a calculation shows insufficient margin, the following measures can improve it:
- Raise the liquid level in the suction tank relative to the pump centreline.
- Reduce suction line friction losses by using a larger pipe diameter, shorter pipe run and fewer fittings.
- Lower the fluid temperature to reduce its vapour pressure.
- Pressurise the suction tank if the process allows it.
- Position the pump below the liquid level (flooded suction) — this is why vertical pumps such as the VSK series are preferred in many chemical applications: with the impeller submerged, NPSH problems are eliminated.
Safety margin for NPSH
Industry best practice requires a minimum safety margin:
NPSH_a ≥ NPSH_r + 0.5 m
Some standards and critical applications demand a margin of 1.0 m or more. Never operate a thermoplastic pump with the NPSH_a barely exceeding NPSH_r — the cost of a destroyed impeller far outweighs the cost of improving the suction system.
Centrifugal pump sizing for corrosive fluids: additional variables
When the fluid is not water but a corrosive chemical, several additional factors enter the sizing calculation.
Fluid density
Most industrial acids are denser than water. Sulfuric acid at 96 % concentration has a density of approximately 1,840 kg/m³ — nearly twice that of water. Since the pump must accelerate a heavier liquid, the absorbed power increases in direct proportion to the density:
P = (Q × H × ρ × g) / (3.6 × 10⁶ × η)
Where P is power in kW, Q is flow in m³/h, H is head in metres, ρ is density in kg/m³ and η is pump efficiency. A pump moving sulfuric acid at 1,840 kg/m³ requires 84 % more power than the same pump moving water at the same flow and head. The motor must be sized accordingly.
Viscosity corrections
Most common acids and bases (hydrochloric, sulfuric, nitric, caustic soda) have viscosity close to water at typical process temperatures, so viscosity corrections are rarely needed. However, some fluids — such as concentrated phosphoric acid or certain polymer solutions — have significantly higher viscosity. For fluids above 10–20 cP, the pump performance curves (developed for water) must be corrected using the Hydraulic Institute viscosity correction method, which reduces both head and efficiency.
Temperature effects
Temperature affects both the fluid properties and the pump material. Higher temperatures reduce fluid viscosity (beneficial for pumping) but increase vapour pressure (detrimental for NPSH). They also reduce the mechanical strength and chemical resistance of thermoplastic materials. PP is typically limited to 80–90 °C, PVC to 55–60 °C and PVDF to 120–130 °C. The pump must be sized for the maximum expected operating temperature.
Material selection and available sizes
The choice of pump material — PP, PVC or PVDF — determines which pump models and sizes are available. Not every material is offered in every pump size: PVDF pumps, for instance, may have a more limited size range due to the higher cost and machining complexity of the material. Nuova Darimpianti’s solid-block CNC machining process delivers tighter tolerances than injection moulding, resulting in better hydraulic efficiency and longer service life — a direct benefit to the sizing calculation, as the actual pump performance more closely matches the published curve.
The Nuova Darimpianti range for every head and flow requirement
Nuova Darimpianti offers a comprehensive range of centrifugal pumps designed specifically for corrosive fluids, covering virtually any combination of head, flow rate and chemical environment.
PMC-1 horizontal centrifugal pump: the workhorse of the range. Single mechanical seal in SiC/SiC or SiC/carbon, available in PP, PVC and PVDF. Suitable for the vast majority of acid, base and saline solution pumping applications where the fluid is not classified as highly hazardous.
PMC-2 horizontal centrifugal pump: double flushed mechanical seal for hazardous fluids. The external flush provides a barrier between the process fluid and the atmosphere, making this the correct choice for toxic or flammable chemicals where seal leakage is unacceptable.
HTM magnetic drive pump: sealless design using a magnetic coupling to transmit torque from the motor to the impeller. Zero leakage by design — the ultimate solution for hydrofluoric acid, carcinogenic solvents and other fluids where any emission is unacceptable.
VSK, VGA, VL and EVFA-N vertical pumps: for applications where the pump must draw from an open tank, sump or pit. The submerged impeller eliminates NPSH concerns and simplifies the suction piping. Different column lengths are available to match tank depth.
All models are machined from solid thermoplastic blocks on CNC machining centres — not injection moulded. This delivers superior dimensional accuracy, consistent hydraulic performance and longer operational life. Custom impeller trims and special configurations are available to match specific duty points that fall between standard pump sizes.
Frequently asked questions
How do you calculate the head of a centrifugal pump?
Total head is the sum of three components: static head (the vertical height difference between suction and discharge levels), friction head (the losses caused by pipe friction and fittings) and pressure head (any additional pressure required at the delivery point). The formula is H_total = H_static + H_friction + H_pressure. Each component is expressed in metres of liquid column. For corrosive fluids, remember that friction losses in thermoplastic pipes (PP, PVC, PVDF) are lower than in steel pipes due to the smoother internal surface.
What is the difference between head and pressure?
Head is expressed in metres of liquid column and is independent of the fluid density. Pressure is a force per unit area (bar, Pa) and depends directly on density: P = ρ × g × H. A pump generating 20 m of head produces approximately 1.96 bar with water but 2.65 bar with 70 % sulfuric acid. Pump manufacturers publish curves in head (metres) because the same pump can handle fluids of different densities — only the motor power changes.
How do I determine the right flow rate for my system?
Flow rate is determined by the process requirement: the volume of liquid to be moved per unit of time. For continuous processes, it is defined by the reactor feed rate, heat exchanger duty or recirculation loop demand. For batch operations, divide the volume to be transferred by the allowable transfer time. Always add a 10–15 % safety margin to the calculated value to account for design uncertainties and potential future capacity increases. Avoid adding excessive margins, as oversizing the pump leads to wasted energy and accelerated wear.
What happens if the pump is oversized?
An oversized pump operates far from its Best Efficiency Point (BEP), which causes several problems: the discharge valve must be throttled to limit flow, wasting energy; vibration and noise increase; internal recirculation at low flow causes localised heating and cavitation; seal life shortens due to shaft deflection; and in thermoplastic pumps, the cavitation damage can destroy the impeller within days. In addition, an oversized motor consumes more electricity for every hour of operation over the pump’s entire service life.
How do I prevent cavitation in acid pumps?
Cavitation is prevented by ensuring that the NPSH available (NPSH_a) exceeds the NPSH required (NPSH_r) by at least 0.5 m. Practical measures include raising the liquid level above the pump suction, using a larger-diameter suction pipe to reduce friction, shortening the suction line, lowering the fluid temperature, or switching to a vertical pump configuration where the impeller is submerged. In thermoplastic pumps, the safety margin on NPSH should be generous because PP, PVC and PVDF are more susceptible to cavitation damage than metals.
Correct centrifugal pump sizing protects your process and your investment
A centrifugal pump that is correctly sized for the actual head, flow rate and fluid properties will operate at peak efficiency, consume less energy, last longer and require less maintenance. In corrosive fluid applications, where every pump failure carries the risk of chemical spills and regulatory consequences, precision in sizing is not a luxury — it is a necessity.
Nuova Darimpianti’s engineering team assists customers through the entire sizing process: from flow and head calculation to NPSH verification, material selection and final pump model choice. All pumps are manufactured from solid thermoplastic blocks on CNC machining centres, ensuring that the delivered pump matches the published performance curves with minimal tolerance deviation.
Need help sizing a centrifugal pump for your corrosive fluid application? Contact our engineers for a detailed technical consultation and pump selection proposal.
by nuovadarimpianti | 14-07-2026 | Mixers
The choice between a fast and a slow agitator is not a matter of personal preference. It is dictated by the physics of the fluid inside the tank — above all, by its viscosity.
Install a fast agitator in a tank of viscous resin and you will see an impressive vortex around the shaft while the bulk of the liquid sits motionless against the walls. The impeller spins at full speed, the motor draws full power, and the process achieves nothing. Conversely, install a slow agitator in a low-viscosity acid bath and you will wait hours for a concentration that a fast unit would have homogenised in minutes. In both cases the cost is the same: wasted energy, extended batch times, inconsistent product quality, and — in corrosive chemical environments — accelerated wear on components that are far from inexpensive to replace.
Getting the speed category right is therefore the first and most consequential decision in any agitator selection project. This guide provides a practical framework for that decision, grounded in the relationship between fluid viscosity, flow regime and impeller geometry. It covers the full range of agitators manufactured by Nuova Darimpianti — from the high-speed EV series to the geared slow-speed KVRL series — and explains how to match each to the process it serves.
Viscosity and flow regime: the basis of selection
Before discussing impeller types or motor power, it is essential to understand the physical property that governs every mixing decision: viscosity.
What viscosity means for mixing
Dynamic viscosity (μ) is the measure of a fluid’s resistance to shear deformation — in plain terms, how strongly the fluid resists being stirred. It is expressed in millipascal-seconds (mPa·s), which is numerically equivalent to the older unit centipoise (cP). The higher the viscosity, the more energy an impeller must transfer to set the fluid in motion.
To put the numbers in perspective, consider these common industrial fluids:
- Water: 1 cP — flows freely, negligible resistance to stirring
- 30 % sulphuric acid (H₂SO₄): ≈ 3 cP — slightly more viscous than water, still very fluid
- Glycerol: ≈ 1,500 cP — thick, honey-like consistency
- Epoxy resins and polymer solutions: 10,000+ cP — semi-solid behaviour, extreme resistance to flow
The difference between 1 cP and 10,000 cP is not merely quantitative; it changes the fundamental character of the flow inside the tank.
The Reynolds number: predicting flow behaviour
The parameter that links viscosity to mixing performance is the impeller Reynolds number, defined as:
Re = ρ × N × D² / μ
Where ρ is the fluid density (kg/m³), N is the impeller rotational speed (rev/s), D is the impeller diameter (m) and μ is the dynamic viscosity (Pa·s). This dimensionless number indicates whether the flow in the tank is turbulent, transitional or laminar:
- Re > 10,000 — Turbulent flow. The fluid moves chaotically in all directions, producing rapid and thorough mixing. Fast agitators thrive here.
- 10 < Re < 10,000 — Transitional flow. A mix of orderly and chaotic motion. The choice between fast and slow depends on the specific process requirements and impeller design.
- Re < 10 — Laminar flow. The fluid moves in smooth, parallel layers with almost no cross-mixing. Only large, slow impellers can sweep the entire tank volume effectively.
Practical viscosity thresholds
While the Reynolds number is the theoretically correct criterion, plant engineers need quick rules. As a practical guideline for standard tank geometries and impeller sizes:
- Below 500 cP → fast agitator (turbulent regime is readily achieved)
- 500–5,000 cP → transitional zone — evaluate case by case; sometimes a geared fast unit or a moderate slow unit is appropriate
- Above 5,000 cP → slow agitator (turbulence is impossible at reasonable power inputs; laminar mixing with large impellers is the only effective strategy)
These thresholds are approximate and depend on tank size, impeller diameter and rotational speed, but they provide a reliable starting point for the fast vs slow agitators decision.
Fast agitators: when and why
Fast agitators operate between 300 and 1,400 rpm, generating intense turbulence and high shear rates in the fluid. They are the default choice for low-viscosity applications where rapid blending, suspension and dispersion are required.
Operating principle
At high rotational speeds, a relatively small impeller generates strong velocity gradients in the fluid. These gradients break up concentration differences, suspend solid particles, shear droplets into smaller sizes and promote gas absorption. The resulting turbulence ensures that the entire tank volume is mixed, provided the viscosity is low enough for the turbulence to propagate outward from the impeller zone.
Applications best suited to fast agitators
- Blending and dilution: mixing two or more miscible liquids of similar viscosity — for example, diluting concentrated sulphuric acid with water, or blending multiple chemical streams before a reactor
- Solids suspension: keeping solid particles (salts, pigments, catalysts) in uniform suspension to prevent settling and ensure consistent downstream processing
- Gas dispersion: drawing gas into the liquid and breaking it into fine bubbles — essential in aeration, neutralisation and certain reaction processes
- Emulsification: creating stable emulsions of immiscible liquids by shearing one phase into fine droplets within the other
- Heat transfer enhancement: turbulent flow at the tank wall dramatically increases the heat transfer coefficient, improving the performance of heating jackets and cooling coils
Impeller types for fast agitators
Nuova Darimpianti equips its fast agitator lines with three principal impeller geometries, each optimised for a different task:
- Marine propeller (3-blade): the most common choice for general-purpose blending and dilution. It produces predominantly axial flow (top-to-bottom circulation), which is ideal for tank turnover and solids suspension. Used in the majority of rinsing, degreasing and acid dilution applications.

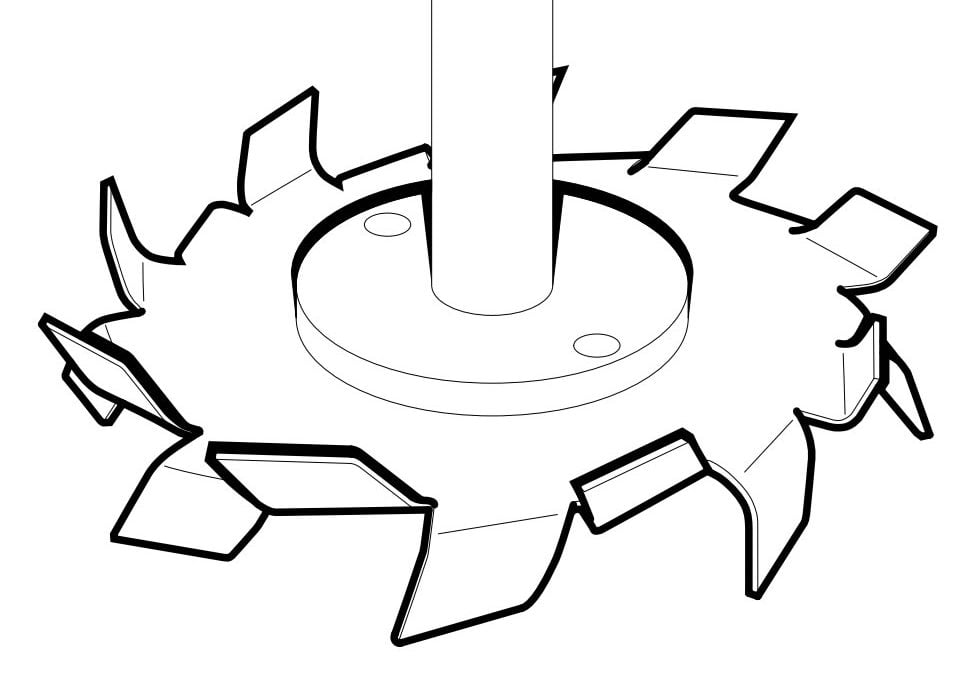

- Cowles disc (high-shear disc): a flat disc with teeth or slots around the periphery, designed to produce extremely high shear at the impeller tip. Primarily used for dispersion of powders into liquids, pigment wetting and emulsification. Not suitable for viscous fluids, as the radial discharge quickly stalls at higher viscosities.
- Turbine (radial flow): produces strong radial discharge and is effective for gas dispersion and intense local mixing. Often used when multiple impellers are mounted on a single shaft to cover the full tank height.
Nuova Darimpianti fast agitator series
The complete fast agitator range includes four models, each addressing a specific installation requirement:
- EV series: the base fast agitator — top-mounted, direct-drive, suitable for the widest range of standard tank configurations
- EVK series: cantilever design with no bottom bearing, ideal for tanks where a submerged bearing would interfere with the process or be attacked by the fluid
- EVL series: extended-shaft variant for deep tanks or installations where the motor must be positioned well above the tank rim
- KVL series: geared fast agitator — a gearbox between motor and shaft allows the use of a smaller, higher-speed motor while delivering the required torque at a reduced shaft speed (typically 300–700 rpm), bridging the gap between the standard fast range and the slow range
Typical industrial uses
In the chemical processing and surface treatment sectors that Nuova Darimpianti serves, fast agitators are routinely employed for degreasing baths, rinsing stations, acid and alkaline pickling, acid dilution, reagent dissolution and any application where the fluid viscosity remains below approximately 500 cP.
Slow agitators: when and why
Slow agitators operate between 10 and 150 rpm, producing laminar or mildly transitional flow with high pumping capacity and minimal shear. They are essential for any application involving viscous, shear-sensitive or delicate fluids.
Operating principle
At low rotational speeds, a large-diameter impeller sweeps through a broad cross-section of the tank, physically pushing the fluid in a controlled pattern. Instead of relying on turbulence to carry momentum outward, the impeller itself extends close to the tank wall and bottom, ensuring that even the most distant regions of the liquid are set in motion. The result is gentle but thorough bulk movement — exactly what viscous fluids require.
Applications best suited to slow agitators
- Homogeneity maintenance: keeping already-mixed solutions uniform over long periods — critical in storage tanks, buffer vessels and recirculation loops
- Shear-sensitive fluids: many polymers, biological solutions and crystal suspensions degrade or change properties when subjected to high shear. A slow agitator provides mixing without damage.
- High-viscosity mixing: fluids above 5,000 cP cannot be mixed by a small, fast impeller — the turbulence simply does not propagate. A large anchor or helical ribbon impeller, rotating slowly, achieves top-to-bottom homogeneity.
- Temperature uniformity: in heated or cooled tanks, slow agitators promote even temperature distribution without the localised hot or cold spots that can occur with fast units and viscous media
- Crystallisation and precipitation: controlled, low-shear agitation allows crystals to grow uniformly without being broken by turbulence, improving yield and crystal size distribution
Impeller types for slow agitators
- Pitched blade (wide blade, low angle): a large-diameter impeller with blades pitched at a shallow angle, producing predominantly axial flow at low speed. Effective for moderate viscosities (500–5,000 cP) and general-purpose slow mixing.
- Anchor: a rectangular or U-shaped impeller that follows the contour of the tank wall, scraping or sweeping the boundary layer. Essential for preventing build-up on heated or cooled walls and for mixing fluids where wall effects dominate (high-viscosity creams, pastes, suspensions).
- Helical ribbon: a continuous ribbon wound helically around the shaft, occupying nearly the full tank diameter and height. The most effective impeller geometry for extremely high viscosities (10,000+ cP), providing both axial and radial flow throughout the entire volume. Typically used for polymer solutions, adhesives, and thick slurries.
Nuova Darimpianti slow agitator series
- EVR series: the base slow agitator — top-mounted with integrated gearbox, the workhorse of the slow range
- EVRK series: cantilever slow design — no bottom bearing, for applications where the submerged end of the shaft must remain free
- EVRL series: extended-shaft slow agitator for deep tanks requiring long immersion lengths
- KVRL series: geared slow agitator — heavy-duty gearbox for the highest torque requirements at very low speeds (10–60 rpm), used in the most demanding viscous-fluid applications
Typical industrial uses
In the sectors served by Nuova Darimpianti, slow agitators are the standard for electroplating baths (chrome, nickel, zinc — where uniform concentration and temperature are critical to deposit quality), viscous chemical storage, polymer and resin processing, crystallisation tanks and any application where product integrity depends on gentle handling.
Direct comparison: the fast vs slow agitators decision table
The following table summarises the key differences between fast and slow agitators to support rapid selection:
| Parameter | Fast agitator | Slow agitator |
|---|
| Speed range | 300–1,400 rpm | 10–150 rpm |
| Reynolds number | > 10,000 (turbulent) | < 10,000 (transitional/laminar) |
| Viscosity range | < 500 cP | > 500 cP (essential above 5,000 cP) |
| Impeller D/T ratio | 0.2–0.4 | 0.5–0.8 |
| Impeller types | Marine propeller, Cowles disc, turbine | Pitched blade, anchor, helical ribbon |
| Flow pattern | Turbulent, high shear | Laminar/transitional, low shear |
| Power characteristic | Low torque, high speed | High torque, low speed |
| Primary applications | Blending, suspension, dispersion, emulsification | Homogeneity, high-viscosity mixing, shear-sensitive fluids |
| Nuova Darimpianti series | EV, EVK, EVL, KVL | EVR, EVRK, EVRL, KVRL |
The golden rule of selection
When the fluid viscosity falls in the transitional zone (500–5,000 cP) and neither category seems clearly correct, the safest approach is: choose the slow agitator. The reasoning is straightforward. A slow agitator operating on a moderate-viscosity fluid will still achieve mixing — it may simply take a little longer. But a fast agitator operating on a fluid that is too viscous will create a dramatic vortex around the shaft while the bulk of the liquid remains stagnant. The visual impression is of vigorous mixing, but the process result is failure. You can always increase the speed of a slow unit with a variable-frequency drive; you cannot make a fast agitator with an undersized impeller sweep the full tank volume, no matter how fast it turns.
This principle is especially important in corrosive environments, where an agitator that churns without mixing wastes energy and subjects the thermoplastic components to unnecessary mechanical stress.
Tank geometry considerations
The performance of any agitator depends not only on the fluid but also on the geometry of the vessel in which it operates. Three geometric factors are particularly relevant to the fast vs slow agitators decision.
Impeller-to-tank diameter ratio (D/T)
The ratio of the impeller diameter (D) to the tank diameter (T) is a fundamental design parameter:
- Fast agitators use impellers with D/T ratios between 0.2 and 0.4. The impeller is significantly smaller than the tank, relying on turbulence to distribute momentum to the tank periphery.
- Slow agitators use impellers with D/T ratios between 0.5 and 0.8. The impeller physically occupies a large fraction of the tank cross-section, directly sweeping the fluid rather than depending on turbulent transport.
If the tank is very large relative to the impeller, a fast agitator may fail to circulate the outer regions — a strong argument for moving to a slow unit with a larger impeller.
Tank aspect ratio (H/D)
Tall, narrow tanks (H/D > 1.5) present a challenge for single-impeller systems. A single fast impeller near the bottom may leave the upper portion poorly mixed. Solutions include multiple impellers on a single shaft (common in fast configurations) or an extended-shaft slow agitator (EVRL or EVL series) designed to reach deep into the vessel.
For squat, wide tanks (H/D < 0.8), a side-entry agitator may be more effective than a top-mounted unit. Nuova Darimpianti’s lateral agitator range — the LVO (fast side-entry) and LRO (slow side-entry) models — is specifically designed for large-diameter, low-height storage tanks and process vessels where a top-entry installation is impractical.
Baffles
Baffles are vertical plates mounted on the inside of the tank wall, typically four equally spaced baffles each with a width of about 1/12 of the tank diameter. Their function is to prevent solid-body rotation (the entire liquid mass spinning as a unit) and to convert tangential flow into axial and radial components.
- Fast agitators almost always require baffles. Without them, a high-speed impeller creates a deep vortex that reduces mixing efficiency and can entrain air.
- Slow agitators generally do not require baffles. At low Reynolds numbers, solid-body rotation is minimal, and the large impeller already sweeps most of the tank volume. In viscous fluids, baffles can actually be counterproductive, creating dead zones behind them where stagnant pockets of unmixed material accumulate.
Materials and chemical resistance
Both fast and slow agitators from Nuova Darimpianti are manufactured from the same three engineering thermoplastics used throughout the company’s pump and agitator range:
- PP (polypropylene): good chemical resistance to a wide range of acids, alkalis and solvents; cost-effective; suitable for temperatures up to approximately 80 °C
- PVC (polyvinyl chloride): excellent resistance to many inorganic acids and alkalis; good rigidity; temperature limit approximately 60 °C
- PVDF (polyvinylidene fluoride): premium material with outstanding resistance to concentrated acids, oxidising chemicals and high temperatures (up to approximately 120 °C); the material of choice for the most aggressive environments
For a detailed comparison of these materials and their chemical resistance limits, see the dedicated article on thermoplastic materials for chemical pumps and agitators.
Material considerations specific to fast vs slow agitators
The speed category affects the mechanical and chemical demands on the material differently:
- Fast agitators subject the impeller and shaft to higher centrifugal forces and vibration. Material strength, stiffness and fatigue resistance become important design considerations. PVDF, with its superior mechanical properties, is often preferred for high-speed applications in aggressive media.
- Slow agitators operate under lower mechanical stress but are typically immersed in the fluid continuously for long periods. Long-term chemical resistance and creep behaviour are the dominant material selection criteria. PP and PVC perform well in many slow-agitation applications; PVDF is specified when the chemical environment is particularly harsh.
CNC solid-block machining advantage
All Nuova Darimpianti agitator components — shafts, impellers, couplings, bearing housings — are machined from solid blocks of thermoplastic on CNC centres, not welded from sheet or moulded. This manufacturing method eliminates weld seams (which are stress concentration points and preferential corrosion sites), ensures dimensional accuracy, and produces components with homogeneous material properties throughout their cross-section. The advantage is significant for both fast and slow agitators, but it is especially critical for fast units where centrifugal forces amplify any structural weakness.
Frequently asked questions
What agitator speed do I need for a fluid with 100 cP viscosity?
A fluid at 100 cP is well within the fast agitator range. In a standard tank with a marine propeller impeller, the Reynolds number at 700–1,000 rpm will comfortably exceed 10,000, indicating fully turbulent flow. An EV series or EVK series agitator with a marine propeller is the typical choice. Only if the fluid is shear-sensitive (for instance, certain polymer solutions that are low-viscosity but degrade under shear) might a slow unit be appropriate at this viscosity.
Can I use a fast agitator for a chrome plating bath?
Chromium plating electrolytes are typically low-viscosity (close to water), which might suggest a fast agitator. However, chrome baths demand extremely uniform temperature and concentration profiles, and excessive turbulence at the surface can increase harmful chromic acid mist emissions. For this reason, electroplating baths almost always use slow agitators — an EVR series with a pitched blade impeller operating at 30–80 rpm — to provide gentle, uniform circulation without surface disturbance.
How do I calculate the Reynolds number for an agitator?
Use the formula Re = ρ × N × D² / μ, where ρ is the fluid density in kg/m³, N is the impeller rotational speed in revolutions per second (not per minute — divide rpm by 60), D is the impeller diameter in metres and μ is the dynamic viscosity in Pa·s (divide cP by 1,000). For example, for water (ρ = 1,000 kg/m³, μ = 0.001 Pa·s) with a 0.3 m impeller at 600 rpm (10 rev/s): Re = 1,000 × 10 × 0.09 / 0.001 = 900,000 — strongly turbulent. For glycerol (μ = 1.5 Pa·s) under the same conditions: Re = 1,000 × 10 × 0.09 / 1.5 = 600 — transitional, likely requiring a slow agitator.
What is the difference between a propeller and a pitched blade impeller?
Both produce axial flow (top-to-bottom circulation), but they are designed for entirely different speed regimes. A marine propeller is a small, three-bladed, high-speed impeller (D/T = 0.2–0.4) that generates flow through lift, much like an aircraft propeller. It is highly efficient in turbulent conditions but stalls in viscous fluids. A pitched blade impeller is a large-diameter, wide-blade impeller (D/T = 0.5–0.8) that pushes fluid by direct displacement at low speed. It works in transitional and laminar regimes where a propeller would be ineffective. In short: propellers are for fast agitators; pitched blades are for slow agitators.
Does Nuova Darimpianti offer variable speed agitators?
Yes. Any agitator in the Nuova Darimpianti range — fast or slow — can be supplied with a variable-frequency drive (VFD, also known as an inverter) that allows continuous adjustment of the motor speed. This is particularly useful in applications where viscosity changes during the process (for example, as temperature rises or as reagents are added), or where the same tank handles different products at different times. The KVL series (fast) and KVRL series (slow) geared agitators are especially well suited to variable-speed operation, as the gearbox provides additional torque at reduced speeds.
Choosing the right agitator starts with understanding the fluid
The fast vs slow agitators decision is, at its core, a question about fluid viscosity and the flow regime it produces. Low-viscosity fluids in turbulent conditions respond to small, fast impellers. High-viscosity fluids in laminar conditions require large, slow impellers. The transitional zone demands careful evaluation — and when in doubt, choosing slow is the safer path.
Nuova Darimpianti manufactures both categories in the same corrosion-resistant thermoplastic materials (PP, PVC and PVDF), using the same CNC solid-block machining process, ensuring that chemical resistance and mechanical integrity are never compromised regardless of the speed category selected.
If you are unsure whether your application calls for a fast or slow agitator — or if your fluid sits in the transitional zone — contact the Nuova Darimpianti engineering team. With detailed knowledge of every series in the range, they can evaluate your fluid properties, tank geometry and process requirements and recommend the agitator configuration that delivers reliable, energy-efficient mixing in even the most aggressive chemical environments.
Request a technical consultation →
by nuovadarimpianti | 14-07-2026 | Technical Insights
There are two fundamentally different ways to manufacture a thermoplastic pump body, impeller or agitator component. The first is injection moulding: molten polymer is forced under pressure into a steel mould cavity, cooled rapidly, and ejected as a finished part. The second is solid-block CNC machining: a certified, stress-relieved block of extruded or pressed thermoplastic is clamped on a CNC machining centre and the final geometry is cut directly from the solid material, one tool path at a time.
The vast majority of manufacturers in the chemical pump industry choose the first path. Injection moulding is faster per unit, cheaper at volume, and allows the production of thousands of identical parts from a single mould. It is the standard process for consumer products, automotive components and commodity fittings. For those applications, it works well.
But chemical pumps and agitators are not commodity products. They operate in concentrated acids, aggressive solvents and oxidising environments at elevated temperatures. They run continuously for years. A single failure — a cracked pump casing, a fractured impeller, a corroded agitator shaft — can shut down a production line, contaminate a batch, or cause an environmental incident. In this context, the manufacturing process is not a back-office detail. It is a technical decision with direct, measurable consequences on performance, durability and total cost of ownership.
Nuova Darimpianti machines every pump body, impeller and agitator component from solid thermoplastic blocks on 3-axis and 5-axis CNC machining centres. Every part, across every product line — from the PMC-1 horizontal centrifugal pumps to the KVRL slow agitators. No injection moulding. No compromises on material integrity. This article explains why, and what it means in practice for the engineers who specify and operate this equipment.
Injection moulding vs solid-block CNC machining: the technical differences
To understand why the manufacturing method matters, it is necessary to examine what happens to the polymer during each process — at the molecular level.
How injection moulding affects the material
In injection moulding, thermoplastic granules are heated to a molten state (typically 200–280 °C depending on the polymer) and injected into a mould cavity at pressures of 500–1,500 bar. The molten polymer fills the cavity from the gate — the narrow injection point — and flows outward until it meets the far walls. As the material contacts the cold mould surfaces, it solidifies rapidly from the outside in.
This process introduces several structural characteristics into the finished part:
- Frozen-in stresses. The outer layers of the part solidify and contract while the core is still molten. The differential cooling creates residual internal stresses that remain permanently locked into the material. These stresses are invisible and unmeasurable by simple inspection, but they are always present.
- Anisotropic molecular orientation. As the molten polymer flows through the mould, the long-chain molecules align preferentially in the direction of flow. The finished part has different mechanical properties in different directions — stronger along the flow direction, weaker perpendicular to it.
- Weld lines and flow fronts. Where two advancing flow fronts meet (around cores, pins, or where the cavity geometry splits the flow), the material does not fuse completely. These weld lines are planes of weakness — they have significantly lower tensile strength and impact resistance than the surrounding material.
- Gate marks and flow irregularities. The gate area — where molten polymer enters the cavity — experiences the highest shear rates and the most rapid temperature changes. The material in this zone has different crystallinity and stress levels from the rest of the part.
- Micro-porosity. Especially in thicker sections, the differential cooling can create microscopic voids (vacuum bubbles) within the part as the core material contracts during solidification.
- Dimensional tolerances. Standard injection moulding achieves tolerances of approximately ±0.3–0.5 mm, limited by mould wear, shrinkage variation and process variability.
For a pump casing that will spend five years immersed in hot sulphuric acid, every one of these characteristics is a potential failure mechanism.
How solid-block CNC machining preserves material integrity
Solid-block CNC machining starts with a fundamentally different raw material: an extruded or compression-moulded thermoplastic block. These blocks are produced by European specialist suppliers under controlled conditions — the polymer is heated uniformly, formed slowly, and cooled gradually over hours or days. The resulting block is stress-relieved, homogeneous and isotropic: its molecular structure is uniform in all directions, with no preferential orientation, no weld lines, and no residual stresses.
The CNC machining process removes material from this block without altering its molecular structure. The cutting tools shear away chips at the surface while the bulk material remains at ambient temperature. There is no melting, no rapid cooling, no pressure-induced orientation. The finished part retains the full integrity of the starting block.
The key advantages of this approach:
- No internal stresses. The finished part is stress-free, exactly as the starting block was.
- Isotropic properties. Mechanical strength, chemical resistance and thermal expansion are identical in all directions.
- No weld lines, flow fronts or gate marks. The part is machined from a monolithic block — there are no planes of weakness.
- No micro-porosity. The dense, homogeneous block structure is preserved throughout the part.
- Dimensional tolerances of ±0.05–0.1 mm. Modern CNC machining centres hold tolerances an order of magnitude tighter than injection moulding.
- Unlimited geometry. Part geometry is defined by the CNC program, not by a steel mould. Complex internal passages, deep undercuts and non-uniform wall thicknesses that would be impossible or prohibitively expensive to mould can be machined directly.
The starting material quality is critical. Nuova Darimpianti sources all its thermoplastic raw materials — PP (polypropylene), PVC (polyvinyl chloride) and PVDF (polyvinylidene fluoride) — from certified European suppliers who provide full material traceability, batch certificates and mechanical property documentation.
Measurable technical advantages of solid-block CNC machining
The structural differences described above translate into specific, quantifiable performance advantages in the field. These are not theoretical benefits — they are observed consistently across thousands of installations in chemical plants, surface treatment facilities and water treatment systems.
Freedom from internal stresses and Environmental Stress Cracking resistance
Environmental Stress Cracking (ESC) is the single most common failure mode for thermoplastic components in chemical service. ESC occurs when a polymer under mechanical stress is simultaneously exposed to a chemical agent. The chemical does not need to be one that attacks the polymer directly — it merely needs to accelerate the propagation of micro-cracks that initiate at points of stress concentration.
In injection-moulded parts, the frozen-in residual stresses provide exactly the conditions that ESC requires. The stressed molecular chains at weld lines, gate marks and surface layers are primed for crack initiation. When a corrosive fluid contacts these stressed regions, cracks develop and propagate — often within 12–18 months of installation, even when the polymer grade is theoretically compatible with the chemical environment.
Components machined from stress-free solid blocks are fundamentally resistant to ESC because the essential precondition — internal stress — is absent. The material is relaxed, isotropic and free from the oriented molecular chains that serve as crack initiation sites. In practical terms, this means that a CNC-machined PP pump casing operating in cyclic acid service at moderate temperatures will typically last three to five times longer than an equivalent moulded casing before showing any signs of surface degradation.
This advantage is particularly pronounced in cyclic thermal environments — processes where the temperature fluctuates repeatedly between ambient and operating temperature. Each thermal cycle in a moulded part adds stress as different regions expand and contract at different rates (due to the anisotropic molecular orientation). In a CNC-machined part with isotropic properties, thermal expansion is uniform in all directions, and cyclic loading produces far less fatigue accumulation.
Dimensional precision and hydraulic efficiency
The performance of a centrifugal pump is defined by its hydraulic curves — the relationship between flow rate, head (pressure) and power consumption at a given speed. These curves are designed by the engineer and depend critically on the exact geometry of the impeller, the volute casing and the clearances between rotating and stationary components.
In an injection-moulded pump, dimensional tolerances of ±0.3–0.5 mm mean that the actual impeller diameter, blade angle, blade thickness and tip clearance can deviate significantly from the design intent. The result is a pump whose real-world performance departs from its published curves — typically delivering lower head, higher power consumption, or both.
CNC-machined impellers hold tolerances of ±0.05–0.1 mm. The blade geometry matches the design precisely. The tip clearance — the gap between the impeller outer diameter and the volute casing — is controlled to within tenths of a millimetre. The practical consequences are measurable:
- Closer adherence to published pump performance curves. The pump delivers the head and flow rate that the engineer specified during system sizing.
- Higher hydraulic efficiency. Tighter clearances reduce internal recirculation losses. Precise blade angles produce the intended velocity triangles. The pump converts a greater fraction of shaft power into useful hydraulic work.
- Lower energy consumption. A pump that operates closer to its best efficiency point (BEP) draws less power for the same duty. Over the typical 5–10 year service life of a chemical pump running 8,000 hours per year, even a 3–5 % efficiency improvement translates into a substantial reduction in electricity costs.
- Reduced vibration and noise. An impeller that is machined to precise geometric symmetry is inherently better balanced than a moulded impeller with unavoidable dimensional variations. Less vibration means less bearing wear, less seal fatigue, less structural stress on piping connections, and a quieter operating environment.
These advantages apply across the full range of Nuova Darimpianti centrifugal pumps: the PMC-1 and PMC-2 horizontal series, the sealless HTM magnetic drive series, and the VSK vertical pump series along with the VGA, VL and EVFA-N vertical configurations.
Uniform chemical resistance across the entire part
In a moulded part, the chemical resistance is not uniform. The weld lines, where two flow fronts met during injection, have lower molecular entanglement and higher residual stress — they are the first areas to be attacked by aggressive chemicals. The gate region, with its different crystallinity and stress state, behaves differently from the bulk material. Surface layers, rapidly quenched against the cold mould, have different morphology from the core.
A CNC-machined part has the same molecular structure throughout its entire volume. The chemical resistance at any point on the surface is identical to the chemical resistance at any other point. There are no weak spots, no preferential attack zones, no weld lines where a crack can initiate and propagate. The published chemical resistance data for the base polymer — whether PP, PVC or PVDF — can be applied with confidence to every square centimetre of the finished part.
This is particularly important for components that handle mixed or variable chemical streams, where different regions of a pump casing or agitator blade may be exposed to different concentrations, temperatures or chemical species during the process cycle.
Design flexibility and custom manufacturing capability
Injection moulding requires a steel mould for each part geometry. A mould for a pump casing can cost tens of thousands of euros and takes weeks or months to manufacture. This imposes severe constraints: only standard sizes are economically viable, design changes require new moulds, and custom parts for one-off or low-volume applications are prohibitively expensive.
CNC machining eliminates the mould entirely. The part geometry is defined by a CAD model and a CNC program. Changing a dimension, adding a port, modifying a flange pattern or creating an entirely new variant requires only a change to the program file. There is no tooling investment to amortise.
This makes solid-block CNC machining the ideal manufacturing method for the industrial pump and agitator market, which is characterised by:
- Low to medium production volumes. Chemical plants need tens or hundreds of units, not thousands.
- High variety. Different process conditions require different pump sizes, materials, flange standards and connection types.
- Custom requirements. Non-standard port positions, special shaft lengths, unusual flange patterns, and process-specific modifications are routine in industrial applications.
- Rapid prototyping. When a new pump or agitator design needs to be validated, a CNC prototype can be machined and tested within days — a cycle that would take months with injection moulding.
Impact on pump durability in corrosive service
The combined effect of the advantages described above — freedom from internal stresses, dimensional precision, uniform chemical resistance — produces a dramatic difference in service life when pumps operate in aggressive chemical environments.
Consider a typical application: a horizontal centrifugal pump handling 30% sulphuric acid at 50 °C in a surface treatment plant, operating in a cyclic process where the temperature fluctuates between ambient and operating temperature several times per shift. This is a demanding but entirely common service condition.
An injection-moulded PP pump casing in this application typically begins to show visible surface cracking — the characteristic signature of Environmental Stress Cracking — within 12–18 months. The cracks initiate at weld lines and gate marks, propagate through the stressed regions of the material, and eventually lead to leakage and catastrophic failure. The pump is replaced, the process is shut down for the changeover, and the cycle begins again.
A CNC-machined PP pump casing from Nuova Darimpianti, manufactured from a stress-relieved extruded block, operating in the same conditions, will typically deliver 3–5 years of continuous service — and often significantly longer — before reaching end of life. The absence of internal stresses eliminates the primary crack initiation mechanism. The isotropic molecular structure resists thermal cycling fatigue. The uniform chemical resistance prevents localised attack.
The dimensional precision of CNC-machined components also extends the life of wear parts and seals. Seal seats machined to tight tolerances provide a more uniform compression of the mechanical seal faces, reducing leakage rates and extending seal life. Impellers that are geometrically balanced produce less vibration, which translates directly into longer bearing life and reduced shaft fatigue.
When the total cost of ownership is calculated — purchase price, installation, energy consumption, maintenance intervals, seal replacements, bearing changes and the cost of unplanned downtime — the CNC-machined pump is consistently the more economical choice. The higher initial component cost is recovered within the first replacement cycle of a moulded alternative, and every subsequent year of extended service represents a net saving.
Impact on agitators: precision where it matters most
The advantages of solid-block CNC machining are equally significant — and in some respects even more critical — for industrial agitators that operate in corrosive environments.
Uniform blade geometry for consistent mixing
The performance of an agitator depends on the precise geometry of its impeller blades: the blade angle, thickness, surface finish and pitch must be uniform across all blades to produce the intended flow pattern and mixing intensity. In a moulded impeller, dimensional variations between blades — caused by uneven flow filling, differential cooling and mould wear — produce an asymmetric flow field. The result is uneven mixing, dead zones in the tank, and inconsistent process outcomes.
CNC-machined impeller blades are cut to identical dimensions from the same block of material. The blade-to-blade consistency is limited only by the repeatability of the CNC machine, which is typically ±0.02–0.05 mm. The resulting flow field is symmetric, predictable and reproducible from one agitator to the next. This matters enormously in electroplating applications, where uneven agitation produces uneven plating thickness and surface defects.
Shaft straightness and concentricity
For vertical agitators — particularly the long-shaft models in the EVL and EVRL series that can extend several metres into deep tanks — shaft straightness is a critical specification. A shaft that is not perfectly straight creates a rotating imbalance that grows worse with length, producing vibration, bearing wear and, in extreme cases, shaft fatigue failure.
CNC turning and milling from a solid thermoplastic rod produces a shaft with straightness and concentricity that cannot be achieved by any moulding process. The shaft diameter is held to tight tolerances along its entire length, the bearing journal surfaces are machined to precise roundness, and the hub interface is concentric with the shaft centreline. The result is an agitator that runs smoothly even at the extended lengths required for deep-tank installations.
Hub precision and power transmission
The hub — the connection between the shaft and the impeller — must transmit the full motor torque without slippage, looseness or misalignment. A CNC-machined hub-to-shaft interface provides a precise fit that distributes the load uniformly, preventing the localised stress concentrations that can lead to fatigue cracking in moulded hubs.
Fume zone resistance
In many chemical tank applications, the most aggressive environment is not the liquid itself but the fume zone — the region above the liquid surface where concentrated chemical vapours condense on all exposed surfaces. Agitator shafts, shaft sleeves and the upper portions of vertical pump columns operate continuously in this zone. The uniform, stress-free molecular structure of CNC-machined components provides maximum resistance to the condensation attack, micro-cracking and surface degradation that are characteristic of fume zone exposure.
These advantages apply across the full range of Nuova Darimpianti agitators: the EV/EVK/EVL/KVL fast series, the EVR/EVRK/EVRL/KVRL slow series, and the LVO/LRO lateral-mount configurations.
The Nuova Darimpianti manufacturing process
Solid-block CNC machining is not simply a matter of buying a CNC machine and cutting plastic. It is a complete manufacturing philosophy that spans the entire production chain, from raw material procurement to final testing.
Certified raw materials
Every block of PP, PVC and PVDF that enters the Nuova Darimpianti facility in Flero (Brescia) comes from certified European suppliers with full material traceability. Each batch is delivered with documentation certifying the polymer grade, mechanical properties, chemical composition and production conditions. This ensures that the starting material meets the specifications required for chemical service — a level of traceability that is impossible with the commodity granules used in injection moulding.
3-axis and 5-axis CNC machining centres
The company operates a fleet of CNC machining centres ranging from 3-axis mills for simpler geometries to 5-axis machines for complex components such as volute casings, multi-blade impellers and contoured agitator blades. The 5-axis capability allows the machining of complex 3D surfaces in a single setup, eliminating the repositioning errors that would accumulate in a multi-setup process.
Quality control on every part
Because CNC machining is inherently a single-part or small-batch process, quality control is performed on every individual component — not on statistical samples from a production run. Dimensional checks, surface finish verification and visual inspection are carried out at multiple stages during machining and again after completion. This is a fundamental difference from injection moulding, where quality control is typically based on sampling from batches of hundreds or thousands of parts.
Assembly and testing
Finished components are assembled into complete pumps or agitators in the Nuova Darimpianti facility. Each assembled unit is tested before shipment: pumps are run on the test bench to verify performance against the published curves; agitators are checked for shaft runout, vibration and motor current draw. No unit leaves the factory without documented test results.
Full traceability
Every component can be traced back through its production history to the specific block of raw material from which it was machined. In the event of a field issue — which is rare but not impossible in the harsh environments where these products operate — the complete manufacturing history is available for root cause analysis.
Complete product range
This manufacturing process is applied across the entire Nuova Darimpianti product range: all horizontal pumps for corrosive environments (PMC-1, PMC-2, HTM), all vertical pumps (VSK, VGA, VL, EVFA-N), all fast agitators (EV, EVK, EVL, KVL), all slow agitators (EVR, EVRK, EVRL, KVRL), and all lateral agitators (LVO, LRO). There are no exceptions — no product line uses moulded components.
Frequently asked questions
What is the difference between a moulded and a CNC-machined pump?
An injection-moulded pump is made by forcing molten plastic into a steel mould under high pressure and cooling it rapidly. This process introduces internal stresses, anisotropic molecular orientation, weld lines and micro-porosity into the material. A CNC-machined pump is cut from a solid, stress-relieved thermoplastic block on a computer-controlled machining centre. The finished part retains the full integrity of the starting material: no internal stresses, isotropic molecular structure, no weld lines, and dimensional tolerances an order of magnitude tighter than moulding (±0.05–0.1 mm vs ±0.3–0.5 mm). The practical result is a component that is more resistant to chemical attack, more dimensionally precise and significantly longer-lasting in corrosive service.
Does solid-block CNC machining cost more than injection moulding?
The per-unit manufacturing cost of a CNC-machined component is higher than the per-unit cost of a moulded part produced in large volumes. However, the total cost of ownership tells a different story. CNC-machined pumps and agitators last three to five times longer in aggressive chemical environments, require fewer seal and bearing replacements due to superior dimensional precision, operate more efficiently due to tighter hydraulic tolerances, and eliminate the cost of unplanned downtime caused by premature failure. When these factors are accounted for across a typical 5–10 year service horizon, the CNC-machined equipment is consistently the more economical choice. Additionally, CNC machining requires no mould investment, making it far more cost-effective for the low-to-medium volumes and high variety that characterise industrial applications.
Which materials does Nuova Darimpianti machine?
Nuova Darimpianti machines three principal thermoplastic materials: polypropylene (PP), the most versatile and widely used, suitable for most acids, bases and saline solutions up to 80–90 °C; PVC (polyvinyl chloride), preferred for sodium hypochlorite service and applications below 60 °C; and PVDF (polyvinylidene fluoride), the highest-performance option for concentrated acids, aggressive solvents and elevated temperatures up to 120 °C. All three materials are sourced as certified, stress-relieved blocks from European suppliers with full traceability.
How long does a CNC-machined pump last compared to a moulded one?
In typical chemical service conditions — for example, handling 30 % sulphuric acid at moderate temperatures with thermal cycling — a CNC-machined PP pump casing will typically deliver 3–5 years or more of continuous service before showing signs of degradation. An equivalent injection-moulded PP casing in the same conditions commonly develops Environmental Stress Cracking (ESC) within 12–18 months. The primary reason is the absence of frozen-in residual stresses in the CNC-machined part: without internal stress, the #1 failure mechanism in chemical service — ESC — is effectively eliminated. For PVDF components in aggressive service, the life extension factor can be even greater.
Can Nuova Darimpianti manufacture custom parts?
Yes. This is one of the inherent advantages of the CNC machining process: because there is no mould, custom parts do not require tooling investment. Nuova Darimpianti routinely manufactures non-standard configurations — modified flange patterns, special port positions, extended shaft lengths, non-standard impeller diameters, bespoke mounting arrangements — based on customer specifications. Custom parts are machined to the same tolerances and quality standards as standard catalogue components, with the same material traceability and testing protocols. Prototypes for new designs can typically be produced within days, allowing rapid validation before committing to a production order. Contact the engineering team to discuss your specific requirements.
Conclusion
In an industry where the default manufacturing method is injection moulding, Nuova Darimpianti has made a deliberate and technically grounded decision to machine every pump and agitator component from solid thermoplastic blocks. This is not a marketing claim — it is a manufacturing reality that is verifiable in every part the company produces.
The advantages are measurable: freedom from the internal stresses that cause Environmental Stress Cracking, dimensional precision that delivers higher hydraulic efficiency and lower energy consumption, uniform chemical resistance with no weak points, and the flexibility to produce custom configurations without tooling investment. The result is equipment that lasts longer, performs better and costs less to own over its service life.
For engineers specifying pumps and agitators for corrosive environments, the manufacturing process should be a primary selection criterion — not an afterthought. The polymer grade matters. The pump sizing matters. But the way the component is made determines how long it will survive in the field.
Contact Nuova Darimpianti to discuss your application requirements, request a technical consultation, or obtain a quotation for CNC-machined pumps and agitators in PP, PVC or PVDF. Every component we manufacture is machined from a solid block — because in corrosive service, material integrity is not optional.
